Características

Especificações

Type: Rotary Drying Equipment

Application: Drying Processing

Condition: New

Voltage: 220v-10kv

Power: 45kw

Dimension(L*W*H): Customized

Key Selling Points: Energy saving

Warranty: 1 Year

Weight (KG): 19500

Applicable Industries: Manufacturing Plant, Energy & Mining

Showroom Location: None

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, PLC

Heating Method: Biomass, natural gas, diesel, coal

Material: SUS304, SUS304L, SUS316, SUS316L, Ti, Other

Product name: Sawdust pellet production line

Vaporization(t/h): 0.565-3.432

Early moisture(%): 35-50%

Final moisture(%): 12-25%(adjusting)

Temperature range(â„ƒ): 270Â±30â„ƒ

Application material: Wood chips, sawdust, bamboo shavings, wood shavings

Feature: Continuous Drying Machine

After-sales Service Provided: Field installation, commissioning and training

After Warranty Service: Video technical support

Local Service Location: None

Informação básica

Condições de Pagamento e Envio

Packaging Details: Container packing

Supply Ability: 10 Piece/Pieces per Month

Descrição de produto

Drying Equipment Parameters Table

Model	JTGT1210	JTGT1409	JTGT1615	JTGT 2010/3
Capacity(t/d)	44.0-19.5	46.5-20.5	88.0-39.0	144.5-63.5
Vaporization capacity(t/h)	0.565	0.595	1.13	1.85
Early moisture(%)	35-50%
Final moisture(%)	12-25%(adjusting)
Drying temperature（℃)	270±30℃
Total motor power(kw)	28	34	45	78
Total weight(kg)	13500	15500	19500	25000
Cover area(m2）	5m×15m	5m×15m	6m×22m	8m×18m

Pellet Machine Parameters

Model	Capacity(t/h)	Feeding Motor Power(kw)	Conditioner Motor Power(kw)	Diameter of Pellet(mm)
DL-WHKL42	0.9-1.1	1.5+0.75	5.5	5-12
DL-WHKL51	1.5-2.5	2.2+0.75	5.5	5-12
DL-WHKL62	2.3-2.8	2.2+1.1	7.5	6-14
DL-WHKL67	2.5-3.5	3.0+1.1	7.5	6-14
DL-WHKL77	3.0-4.0	3.0+1.5	7.5	6-14
DL-WHKL80	4.0-6.0	3.0+1.5	11	8-16
DL-WHKL90	10.0-12.0	3.0+1.5	11	8-16

Biomass energy is second only to coal, oil and natural gas one of the world's total energy consumption 4th.According to experts predict that biomass energy is likely to become an important part of the future sustainable energy system, at the middle of this century, using new technology to produce all kinds of biomass alternative fuels will account for more than 40% of total global fuel consumption.

According to the demand of market, our technical team designs and manufactures the equipment of biomass pellet production line,which are suitable for the biomass material with the 35-56% moisture to make pellet, such as sawdust, bamboo shavings, wood shavings, barley straw, oat straw, wheat straw, rye straw, rice straw, rice husk, bagasse, sorghum straw, corn straw, beans stalk, peanut vine stalk,etc. We also help optimize the drying and pelleting process according to the property of different biomass materials, production scale, application requirements, cost control, automation level, and site condition.

If your raw material is wood waste, you need to go through the following steps to make biomass pellet fuel:

1. Chipper or shredder: If your raw materials are logs and large pieces of waste wood, you need to cut them into small pieces and then dry them.
2. Rotary dryer/air dryer: If the raw material has a high moisture content of 25%, it needs to be dried before granulating.
3. Cyclone dust collector: the gas from the tumble dryer must pass through the cyclone dust collector for dust removal.
4. Pelletizer: The dried wood chips are used by the pelletizer to make pellet fuel with a diameter of 3-5mm.
5. Baler: Pack the biomass pellets from the conveyor belt into bags as required, and then load them directly into the car for sale

If you want to know the price and detailed parameters, please click here.

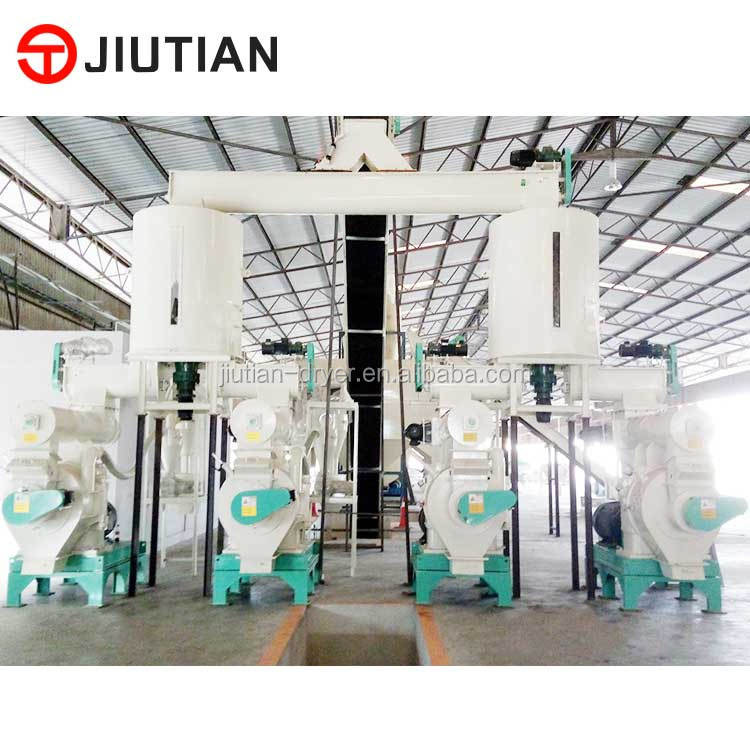

The finished product to show

Features 1.Patent technology (patent no. : ZL200920089749.2), single equipment the kinds are variety, application to a variety of materials, modular structures, optimize configurations, ensure production lines broad applicability. 2.This production line can according to customer's requirements to realize intelligent control, a key "fool" type operation, the operation parameters can be automatic control, the production line running is always in the best condition, ensure the production capacity and product quality. 3.More than 300 users in the world, our factory has the rich practical experience. 4.The cover area reduce 50% than the traditional drying granulating production line , civil investment reduce about 50%. 5.The internal structure of the dryer with various efficient feed device combination modes, it effective regulation of drying process and heat distribution, high heat utilization, waste gas discharge temperature is lower than 50 ℃, all of designs ensure the production line running low energy consumption. 6.Processing route use one time drying, secondary crushing, continuous feeding and adjust feeding mixed process combining ,the particle shaping fuel rate of 98%, bulk density and particle density is high.This drying and pelleting production line can realize the scale, continuous and stable production, meet the requirements of industrialization of biomass pellet fuel. 7.Modular dust collecting and purifying heat recycling configuration, safe and protect environmental.

Zhengzhou Jiutian Machinery Equipment Co.,Ltd covers coal drying system equipment for slime, lignite, Mongolian coal, clean coal and fly ash;Dregs drying equipment for Brewer’s grains,corn shell,kitchen waste,cassava residue,fruit residue,sauce residue,potato residue,bagasse residue,medicine residue;drying equipment for corn,sorghum, rice,soybean, peanut seedling and wheat straw;haydrying equipment for alfalfa,oats,dog tail grass,etc;complete wood processing leftovers drying and pelletizing production line for sawdust, shavings,wood flour,wood bran and wood chips etc;other drying product for gypsum, slag materials, bentonite, sludge etc.

Q: What is your Business Model? Trading company or factory?
A: We are a 15 years factory, all our machinery is manufactured by ourselves, factory direct sales, product quality, and
after-sales service can be guaranteed.

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.We will pick you up at the airport. Welcome to visit our factory.

Q: What is the Quality of your products?
A: Zhengzhou Jiutian products come with the best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia,South Africa, etc. You can rest assured of the quality absolutely.

Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.
