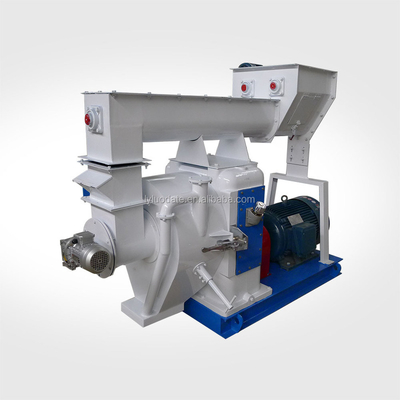

Make Biomass Pellets Biomass Pellet Machine/Wood Machine For To Make Wood Pellet/Wood Pellet Production Equipment

1.0 Sets
MOQ
Make Biomass Pellets Biomass Pellet Machine/Wood Machine For To Make Wood Pellet/Wood Pellet Production Equipment
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Raw Material Processed: Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks
Pellet Diameter (mm): 2 - 12
Output (kg/h): 200 - 2000 kg/h
Voltage: 380V
Dimension(L*W*H): 2950*1350*2150mm
Motor Power (Kw): 99/110kw
Power (kW): 99/110kw
Warranty: 2 years
Applicable Industries: Farms, Machine for making pellet wood
Key Selling Points: High Productivity
Weight (KG): 3000 KG
Marketing Type: wood pellet machine biomass
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Bearing, Motor, Gear, Gearbox
Product name: wood pellet machine biomass
Raw material: Sawdust\straw\rice Husk\wood Waste
Application: Make Biomass Pellets
Color: Customer's Request
Name: machine for make pellet wood
Motor: SIEMENS Brand
Spare parts: Ring Die+ Rollers
Pellet size: 2mm-12mm
Capacity: 1-10T/H
Item: wood pellet production equipment
After-sales Service Provided: Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Showroom Location: None
Certificação: CE ISO TUV
Informação básica
Certificação: CE ISO TUV
Condições de Pagamento e Envio
Packaging Details: Standard international export packing. wood pellet production equipment was covered with plastic bags and was loaded in the wooden box that with steel frame structure. Spare parts will be protected in water proof bags and boxes.
Supply Ability: 300 Set/Sets per Month machine for make pellet wood
Descrição de produto
wood pellet machine biomass / machine for make pellet wood / wood pellet production equipment
Product Description
Scope of application: this machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower, olive, bagasse, and other raw materials.

Main drive: adopts high accuracy gearbox for high efficiency.

Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device.

High output, low noise, convenient operation and maintence.

Main parts of the bearing and standard parts are imported.

Equipped with between 6 and 12 more aperture and the thickness of the ring die, users can choose according to the different requirements.
We can offer capacity from 1T to 20T per hour and even more, according to your need to choose which is suitable for yours.
Final Product
Different Pellet Size Can Be Making and Changing the Ring Die Parts of Pellet Machine
technical parameters

Model
Power (kw)
Power of feeder (kw)
Capacity(t/h)
SZLH 250

22
0.75
0.1-0.2
SZLH 320

37/45
0.75
0.3-0.5
SZLH 350

55
1.1
0.5-0.8
SZLH 400

75/90
1.5
0.8-1.5
SZLH 420

90/110
1.5
1.5-2
SZLH 508

132/160
1.5
2-3
Product Details
Project Case
10TPH Wood Pellet Production Line
5TPH Wood Pellet Production Line in Nepal
Company Profile
Luoyang Luodate Machinery Equipment Co., Ltd. was found in 1994, which is an enterprise integrating Research & Design, production, sales and installation. 26 years factory production experience of the feed & biomass pellet production field. Alibaba 7 years Gold Supplier, have more than 10 national patent. Have the ISO9001, CE, SGS & TUV. Now, we have established partnerships with customers from more than 70 countries, to help them make reasonable solutions and achieve scientific production processes.
Standard international export packing.
Equipment was covered with plastic bags and was loaded in the wooden box that with steel frame structure.
Spare parts will be protected in water proof bags and boxes.
FAQ
FAQ
1. How long is the warranty period for the equipment?
2-year warranty, lifetime service

2. Do you have staff to install the equipment?
Yes, we can send technicians to your country to guide the installation.

3.Are Siemens motor and stainless steel used?
As long as you need, we can provide.

4.Can your equipment run 24 hours a day?
Our equipment is strong and durable.It can operate 24 hours a day.

5.How long will it take to produce the equipment?
Expected to take 30-50 days.
