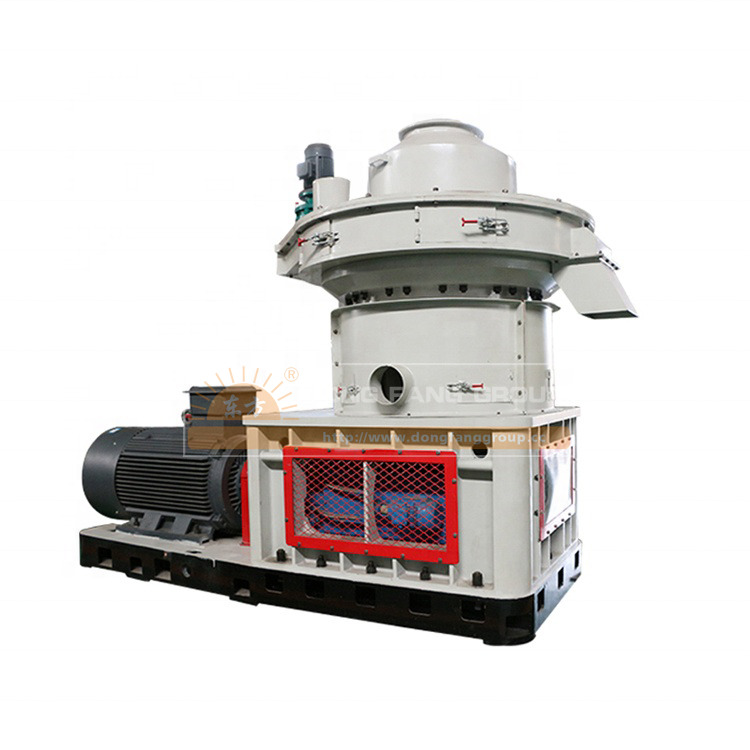

High quality good working ring die wood pellet making machine for sale
Vertical ring die biomass pellet machine is specially designed for mass industrial production of wood pellets.
Gearbox: high precision gear transmission, with automatic hydraulic circulating oil system, ensure the lifespan of the gearbox and the stability of pellet machine.
Vertical motor: vertical work, the outstanding characteristic is mounting holes with output shaft as the center, equidistant distribution, so the machine has the greater power and the better stability.
Fan:on one side of the machine,control the working time freely, the main function: dust removal and discharge steam for the work bin.
The Materials of Wood Pellet Making Machine:
This machine is mainly used for making the wood pellets, and the raw material like wood waste or agricultural waste, such as corn/wheat/rice straw, coffee/peanut shell and so on can be processed by it.
The pellets are used as fuels in electricity-generating and water-heating in power plant industry, boiler factories, etc.
Main Features of wood pellet machine
1. Gear driven.
2. Force feeder.
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, SKF bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
1.Vertical Die:This design can avoid the raw material arching in granulating room
2.Cooling system:As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened
3.Huali frequency conversion motor: famous brand.
4.Bearing:Japan famous brand, High precision, high speed, low noise, long life
5.Unique automatic lubricating system:Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energy consumption.It can work continuous 20 hours.
Technical Parameter of wood pellet machine
|
Items |
DF350 |
DF420 |
DF508-1 |
MZLH508-2 |
|
|
Main motor power(kW) |
55 |
90 |
110 |
132 |
|
|
Feed motor(kW) |
1.1 |
2.2 |
2.2 |
2.2 |
|
|
Forced feeder motor(kW) |
0.75 |
0.75 |
0.75 |
0.75 |
|
|
Ring die diameter(mm) |
350 |
420 |
508 |
508 |
|
|
Product capacity(t/h) |
0.4-0.6 |
1.0-1.5 |
1.2-1.5 |
1.4-1.8 |
|
|
Pellet size(mm) |
6.0-8.0 |
||||
|
Noise level(dB) |
≤80dB(A) |
||||
|
Dimension (mm) |
length |
2500 |
2900 |
3050 |
3050 |
|
width |
1100 |
1300 |
1350 |
1350 |
|
|
height |
1600 |
2300 |
2450 |
2450 |
|
