Características

Especificações

Condition: New

Raw Material Processed: Grass

Pellet Diameter (mm): 4 - 12

Output (kg/h): 800 - 1000 kg/h

Voltage: 380V 50hz or Customized

Dimension(L*W*H): 2300*1100*2000mm

Motor Power (Kw): 55+3+1.5+1.5+0.37kw

Power (kW): 61.37kw

Warranty: 1 Year

Applicable Industries: Manufacturing Plant, Farms, Home Use, Retail, Food Shop, Energy & Mining

Key Selling Points: Long Service Life

Weight (KG): 4700 KG

Marketing Type: Hot Product 2021

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor

Raw material: Sawdust\straw\rice Husk\wood Waste

Product name: biomass pellet making machine

Keywords: biomass pellets making machine

Application: Make Biomass Pellets

Usage: Making Wood Pellets Animal Feed Pellets

Capacity: 800-1000kg/h

Color: Clients' Requirement

Spare parts: Ring Die+ Rollers

Ideal moisture: Biomass Pellet 10-15%

Pellet size: 4-12mm Diameter

Informação básica

Condições de Pagamento e Envio

Packaging Details: wooden box

Supply Ability: 20 Set/Sets per Month biomass pellets making machine

Descrição de produto

Related products

Product Description

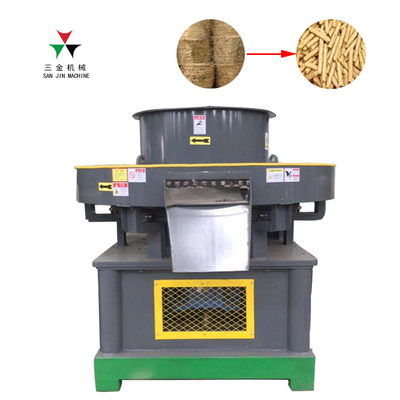

High efficiency automatic sawdust wood chips rice husk pellet machine fish shrimp chicken sheep cattle feed making machine

Introduction:

Wood machine pellet is a kind of molding equipment which can compresses agricultural and forestry biomass(disperse finely divided,non-shaped)into a rod-shaped and granular shape under the action of a certain temperature and pressure.Biomass granules can use biomass and other wastes such as wood chips, straw, rice husks and bark as raw materials, and solidify them into high-density granule fuels through pretreatment and processing. It is an ideal fuel to replace kerosene. It can not only save energy but also reduce soot emissions, but also economic and social benefits. It is an efficient and clean renewable energysource.

Features:
*1. The mold is vertical and vertical feeding; the mold is stationary, the pressure roller rotates; the material is centrifuged, the material distribution is uniform;
*2. 360 degree output high efficiency and energy saving; automatic lubrication system high pressure filtration, clean and smooth; independent frequency conversion, to ensure pellet molding.
*3. The pelletized fuel after molding has a large specific gravity, is small in volume and resistant to combustion, and is convenient for storage and transportation. The volume after molding is 1/30 of the volume of the raw material, the specific gravity is 10-15 times of the raw material, and the calorific value can reach 3400-6000 kcal.
*4. Material and Finished Production:
wood machine pellet is suitable for all kinds of crop straw, wood chips, bamboo chips, rice husks, branches, bark, peanut melon shell, bagasse, Chinese medicine residue, sage and other raw materials, water content 10-30 % can be processed.

Working Principle:
*1 The wood machine pellet uses the principle of interaction between the pressing force between the annular die and the pressing wheel and the frictional force of the die hole to make the material form.
*2 There is no need to add any additives and binders during the processing of the materials. The wood materials have softening characteristics. When the temperature reaches a certain value, the softening and bonding strength are enhanced under a certain pressure to make the molecular clusters dislocation, deformation and extension. The adjacent biomass particles are recombined and pressed into shape.

Wood pellet Machine Use Raw Material:
1. Wood waste, scobs, branch, palm tree, sugarcane residue, sawdust, medical slag, hay, discarded edible fungus.
2. Bean stalk, wheat stalk, corn stalk, cotton stalks, sunflower stalks, mustard stalk, rice stalks, coffee husk, cotton shell, peanut shell, rice shell, coconut shell.
3. Livestock and poultry's waste, tea waste, tea waste, forestry wastes, forestry wastes, wood chips and many other organic waste resources.

Specification

Model	HY-450	HY-560	HY-600	HY-700
Power	55+3+1.5+1.5+0.37kw	90+3+1.5+1.5+0.37kw	110+3+1.5+1.5+0.37kw	132+3+1.5+1.5+0.37kw
Inner Dia of ring die	450mm	550mm	600mm	700mm
Capacity	800-1000kg/h	1500-2000kg/h	2000-2500kg/h	2500-3000kg/h
Dimension	220011002000mm	235013002300mm	260013002400mm	290013002400mm
Weight	4.7t	5.8t	6.9t	9t
Diameter of Pellets (MM)：6-12mm
Temperature of Pellets (°C)：80-100
Moisture of Feed Materials (%)：15-20
