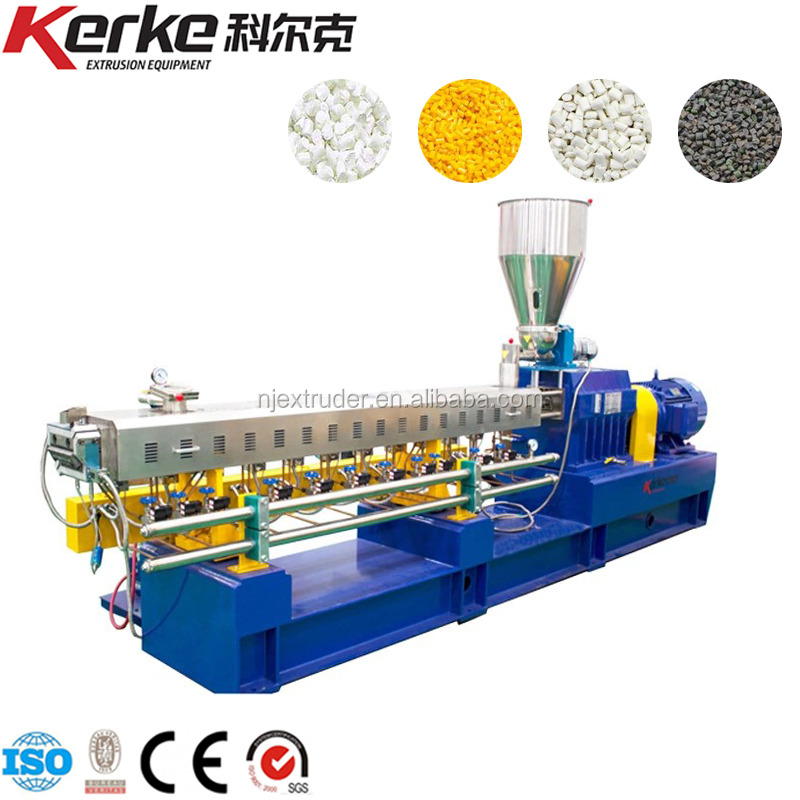

New Standard Underwater Pellets Pelletizing Production Lines Twin Screw Extrusion Equipment

KTE Series Co-rotating Parallel Twin-screw Extruder Features

1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function, the new kneading block design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array, venting number and location, feeding method, electrical control methods etc. for rational allocation.

3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting, water ring die face hot cutting, Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.

4. Application: Filling Modification, glass fiber (carbon fiber) enhance various kinds of master batch, rubber and plastics compounding, plastic alloys, functional master batch, Various kinds of electric cable material, reactive extrusion. Devolatilization process, powder coating and so on..

Security Protection:
1.coupling can effectively protect the reduction gearbox from extrusion unit overload dangers.
2.water-cooling system and lubrication systems are all real-time online monitoring.
3.drive ead pressure and melt temperature are all equipped with alarm systems.

Underwater pelletizing system:

After long term reaserch and and development, we have innovated the under water pelletizing system based on the absorbtion of advanced technology, This makes our UW system dominate on the market in China

Various special cutting devices to reimburse the micro clearance of cutter and die plate, thus greatly improved the reliability of our UW system

Various special feed/retract adjusting devices to guarantee the minimum abrasion of cutter

Ultrahigh anti-abrasive WC material made under water die head, use different cutter according to different raw materials to meet a long working time.

Big power heating system and advanced heat insulation system for the die head to guarantee the heat balance

Fast diverter valve to guarantee the efficient operation

PLC controlling system to meet manual/ automatic operation. While touch screen operation system is easy to operate and maintain

UW System Parameter

Flow Chart of Under Water Pelletizing System

Main Application

Thermoplastics:

TPS

TPO

Dynamically vulcanized TPV(PP/EPDM )

TPU

TPE

TPA

Hot Melt Adhesive(EVA)

Others:

Masterbatch

Filling and Modification

Compounding and Modification

Fiber Glass Reinforced

Advantages of Underwater Pelletizers

Easy and simple to clean

Energy efficient

Compact, less space required

Ideal horizontal melt flow;

no 90° angles or dead areas

Designed for various polymers

Low maintenance

Low production costs

Pellet sizes from 0.2 mm to 12.0 mm

Low noise emissions

A:Where is our factory?
We are in No.11,boai road,lukou street,jiangning district,nanjing city,jiangsu porvince,china
B:How to get to our factory?
(1)You can get to the lukou airport directly,then,connecting us and we will pick you up by car
(2)You can take the train to nanjing south station,then,taking the subway to get to xingyulunan station,we will pick you up by car
C:Why choose us?
(1)We have complete system of designing of extrusion equipment
(2)We can privide thre perfect extrusion management solutions and extrusion equipment
(3)We could make you in a leading position in the industry
D:What's the payment method?
L/C,T/T,Western union
E:Can you see the running machine in our factory?
Yes.Before making your decision buying the equipment or not,you can bringsome material here to test-run the equipment
F:How long of the warranty time?
Our warranty period is 1 year
