Make Biomass Pellets CE Approved Sawdust Wood Pellet Making Mill With Competitive Price

1 Set
MOQ
$2,300.00(1 - 9 Sets) $2,280.00(10 - 19 Sets) $2,260.00(>=20 Sets)
preço
Make Biomass Pellets CE Approved Sawdust Wood Pellet Making Mill With Competitive Price
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Raw Material Processed: Wood Sawdust, Biomass
Pellet Diameter (mm): 6 - 10
Output (kg/h): 100 - 200 kg/h
Voltage: 380v
Dimension(L*W*H): 112*45*110cm
Motor Power (Kw): 15
Power (kW): 15
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Home Use, Retail, Construction works , furniture factory
Key Selling Points: Easy to Operate
Weight (KG): 350 KG
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Engine
Name: Wood Pellet Mill
Application: Make Biomass Pellets
Raw material: pine,birch,chips,sawdust,waste wood
Usage: wood pellets
Capacity: 100kg/h-200kg/h
Motor: 15kw
Advantage: High Performance
Pellet size: 6/8/10 Mm Customized
Keywords: wood pellet making machine
Color: yellow and grey
Informação básica
Condições de Pagamento e Envio
Packaging Details: wooden case
Supply Ability: 1000 Set/Sets per Quarter
Descrição de produto
Product Description

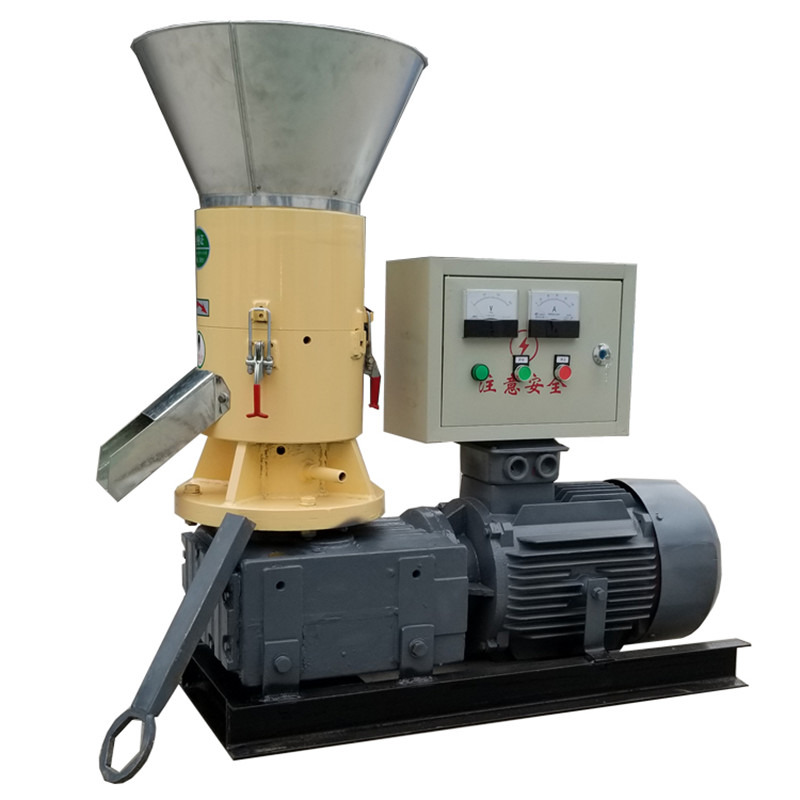

100-200kg per hour flat die type wood pellet machine
1. Model : 250
2. Power: 100-200kg/h
3. Power: 15kw
4. Type : flat die wood pellet machine.
5. Pellet machine model: with die stable roller move
6. Other wood pellet machine with different capacity also
7.available:100-200 kg per hour capacity

More instruction about flat die wood pellet machine:
1. Wood pellet machine is a new type small wood pellet machine , it takes crushed sawdust and bran biomass from all kinds of wood sawdust pine, birch, poplar , fruit and agricultural straw, bamboo etc into pellets as fuel.
2. wood pellet machine hourly capacity is 100-200 kg per hour with 15kw power. It is flat die type wood sawdust pellet machine.
3. Wood pellet machine sawdust pellet mill work with one die and two rollers. With roller move die stable.
4. We also have different types of die for your reference.
5. All kinds of biomass raw materials can be made into pellets as per your wish.
Small sawdust granulator specification Ml-250


Engine
Engine model
Kw
15
motor speed
rpm
1400
Machine speed
rpm
170


output
Main performance parameters
Size
mm
1150*440*1100
Weight
kg
380
output
kg/h
100-200


remark
power supply
V
380
pack
wooden box
1
type of shipping
sea transportation
1

Main Features

Advantage 1: After the pressure roller is enlarged, the bearing is enlarged and the pressure bearing capacity is enhanced.
Advantage 2: After the pressure roller is enlarged, the temperature generated by the extrusion friction is not easily transmitted
to the bearing chamber, ensuring that the lubricating grease does not easily overflow when the bearing is working at a low temperature.
Advantage 3: After the pressure roller is enlarged, the pressure roller can be repaired 2-3 times, the service life is prolonged, the production cost is reduced, and the profit margin of the project is increased.
Advantage 4 ：the model pressure roller adopts multiple uniform distributions, and the operation is stable, and at the same time, the pressing area is increased, and the production efficiency is improved.
Advantage 5： The compression molding of this model is diversified. Round rods (Φ20--Φ30mm), squares (20×30mm), and pellets (1.5-Φ15mm) can be replaced by changing the mold to meet different materials compression molding to achieve the best benefits. .
Advantage 6：the granulating room is equipped with an observation door, which is easy to check and maintain at any time.

Wood pellet processing machine production line

We can according to the customer's output requirements of raw material material and other factors for each customer to provide large and small models of wood pellet machine production line, and provide scientific advice and machine configuration. Provide crushing equipment, including dust removal equipment, material conveying equipment, wood particle pressing equipment, etc.
Specification
The internal structure of wood pellet machines
Wood pellet machine both ends of the press roller and the grinding disc, the outer ring line speed is consistent, there will be no
islocation friction between the wheel and the mold, reduce the resistance, reduce the loss of kinetic energy, prolong the service
life of the mold
High torque reducer
Wood pellet processing machine using copper motor and high torque reducer, effectively ensure the power transmission of wood
pellet machine, can work for 8-10 hours
The core component of wood pellet machine
Wood pellet machine roller and mold is made of high quality alloy steel material, and the use of forging hair, lathe
processing,CNC drilling machine, carburizing heat treatment process, with wear-resistant, no deformation, long service life and
other advantages.
Complete supply of accessories
Wood pellet machine accessories complete to ensure the normal use of customers' machines, and in the first time to provide fast
parts supply
Detail images
Wood pellet Machines model
ML- 250
Name: wood pellet machine
Original: china shandong
power:15kw
production:100-200kg/h
Wood pellet Machines model
ML- 300
Name: wood pellet machine
Original: china shandong
power:22kw
production:200-300kg/h
Wood pellet Machines model
ML- 350
Name: wood pellet machine
Original: china shandong
power:30kw
production:300-400kg/h
Wood pellet Machines model
ML-550
Name: wood pellet machine
Original: china shandong
power:55kw
production:700-1000kg/h
Widely used
Company Profile
Halo import and export co., Ltd. Is a professional machine manufacturer. located in Jinan city, Shandong Province, China and near to Qingdao port. Our main products are feed processing machines wood pellet machine wood pellet stove electric flat cart etc. High quality, standard-tested, long-term foreign buyers such as:, Africa, Southeast Asia, Europe and America, and finally South Americaetc.We can support OEM at the same time. We have a mature, first-class production team, hoping to give each other an opportunity to meet our own needs. Looking forward to establish business with you!
Packing & Delivery
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q: Are you a manufacturer or an agent?
We are the manufacturer which has 6 years experience and own research and development team.
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically.
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
